Jitterbit Management Console

Overview

The Jitterbit Management Console (Management Console) is a collection of pages that administrators use to manage Harmony organizations, and each organization's users, environments, projects, roles, and permissions.

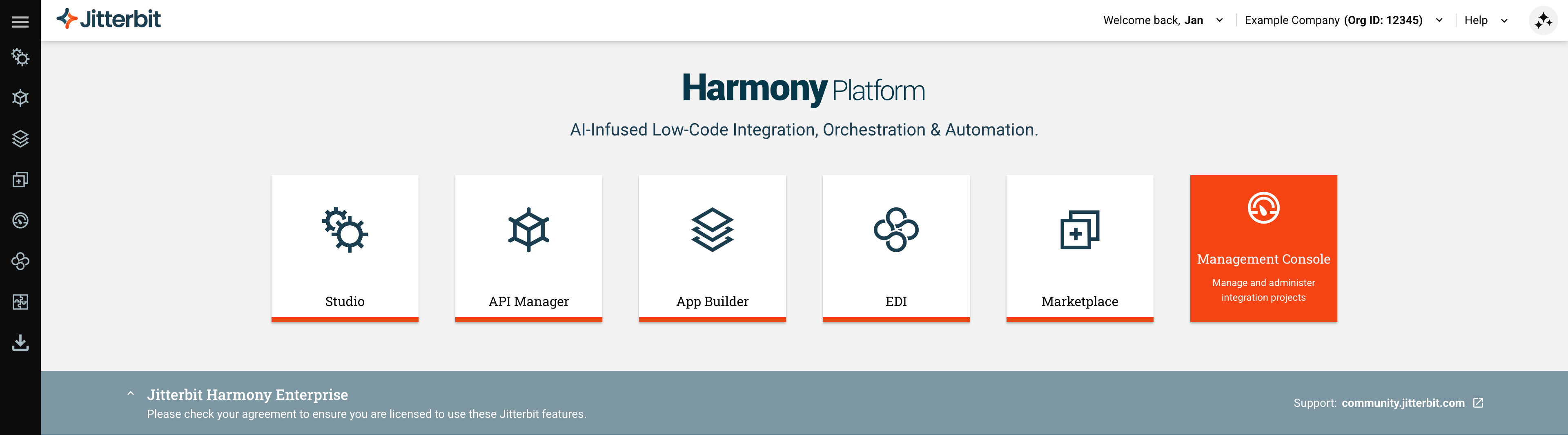

To open the Management Console, first ensure you meet the Harmony portal's prerequisites and have the required role permissions and environment access levels. Then log in at https://login.jitterbit.com and click the Management Console tile:

tiles Management Console

You can also navigate directly to each Management Console page from the Harmony portal menu > Management Console.

The following lists each Management Console page, its purpose, and what it manages (with respect to the entity-relationship diagram immediately following):

Management Console page Description Entity (see below)
Dashboard Overview
Access Tokens Manage access tokens for agents, cloud storage, and EDI.
Agents Manage agent groups and agents. AGENT, AGENT_GROUP
Alerts Send alerts to selected users.
Audit Logging Manage audit logging, and view audit logs.
Cloud Datastore (Beta) Manage Jitterbit Cloud Datastore status storages and key storages.
Environments Manage environments. ENVIRONMENT
Message Queues Manage Jitterbit MQ message queues and their tokens.
Organizations Manage organizations and organization policies. ORGANIZATION
Projects View and manage integration projects. PROJECT
Runtime Operations View project operation logs.
User Management Manage users and their roles. USER, ROLE, PERMISSION
Customizations > App Registrations Manage authorized applications and their token policies.
Customizations > Client Certificates Manage SSL certificates.
Customizations > Plug-ins Manage plugins.
erDiagram
  ADMINISTRATOR }| -- || ORGANIZATION: Administers
  USER          || -- o{ ORGANIZATION: Belongs
  ADMINISTRATOR || -- o{ USER:         Invites
  ADMINISTRATOR }| -- o{ ENVIRONMENT:  Creates
  ORGANIZATION  || -- |{ ENVIRONMENT:  Provides
  USER          || -- o{ PROJECT:      Builds
  PROJECT       || .. || ENVIRONMENT: "Runs in/deploys to"
  ENVIRONMENT   }o .. || AGENT_GROUP:  Associates
  AGENT_GROUP   || -- o{ AGENT:        Contains
  ROLE          || -- |{ PERMISSION:   Allows
  ORGANIZATION  || -- |{ ROLE:         Permissions
  USER          || .. |{ ROLE:         Assigned
  ADMINISTRATOR || .. |{ ROLE:         Defines
  ROLE          || .. |{ ENVIRONMENT: "Accesses (Grants access)"

Entity-relationship cardinality legend

Value (left) Value (right) Meaning
|o o| Zero or one
|| || Exactly one
}o o{ Zero or more
}| |{ One or more

In this diagram, your organizations (ORGANIZATION) and a first administrator (ADMINISTRATOR) are set up by Jitterbit. After that, it is that first administrator's job to invite users and assign them roles (which can include the administrator role), define new roles and permissions, set up agents, agent groups, and environments, and associate environments with groups. Users can then create and run projects in whichever environments their assigned roles permit.

Release schedule and release notes

As a Harmony web application, the Management Console is automatically updated to the latest version of the application following the Harmony release schedule.

In the Harmony release notes, the Management Console is considered part of the Cloud platform and applications category, and individual release notes for the Management Console application are listed under the Management Console heading.
