Microsoft Teams connector prerequisites

Introduction

As the Microsoft Teams connection will be an application that interfaces with Microsoft, you will need to register an application at Microsoft Entra ID with a specific set of permissions.

The Microsoft Teams connector supports OAuth 2.0 using this Microsoft Entra ID app registration process.

Note that using all Microsoft Teams connector activities requires 31 API permissions. As such, an account with sufficient limits on requested permissions per app must be used.

Additional information on registering applications and granting permissions is available in the Microsoft Graph documentation.

You can create a Microsoft Teams application in the Microsoft Entra ID portal or by using a script, as described in the following sections.

Important

If multi-factor authentication (MFA) is enabled on the Microsoft Entra ID organization, you must exclude the application from conditional access policies (required for a successful connection using the Microsoft Teams connector).

Microsoft Entra ID app registration steps

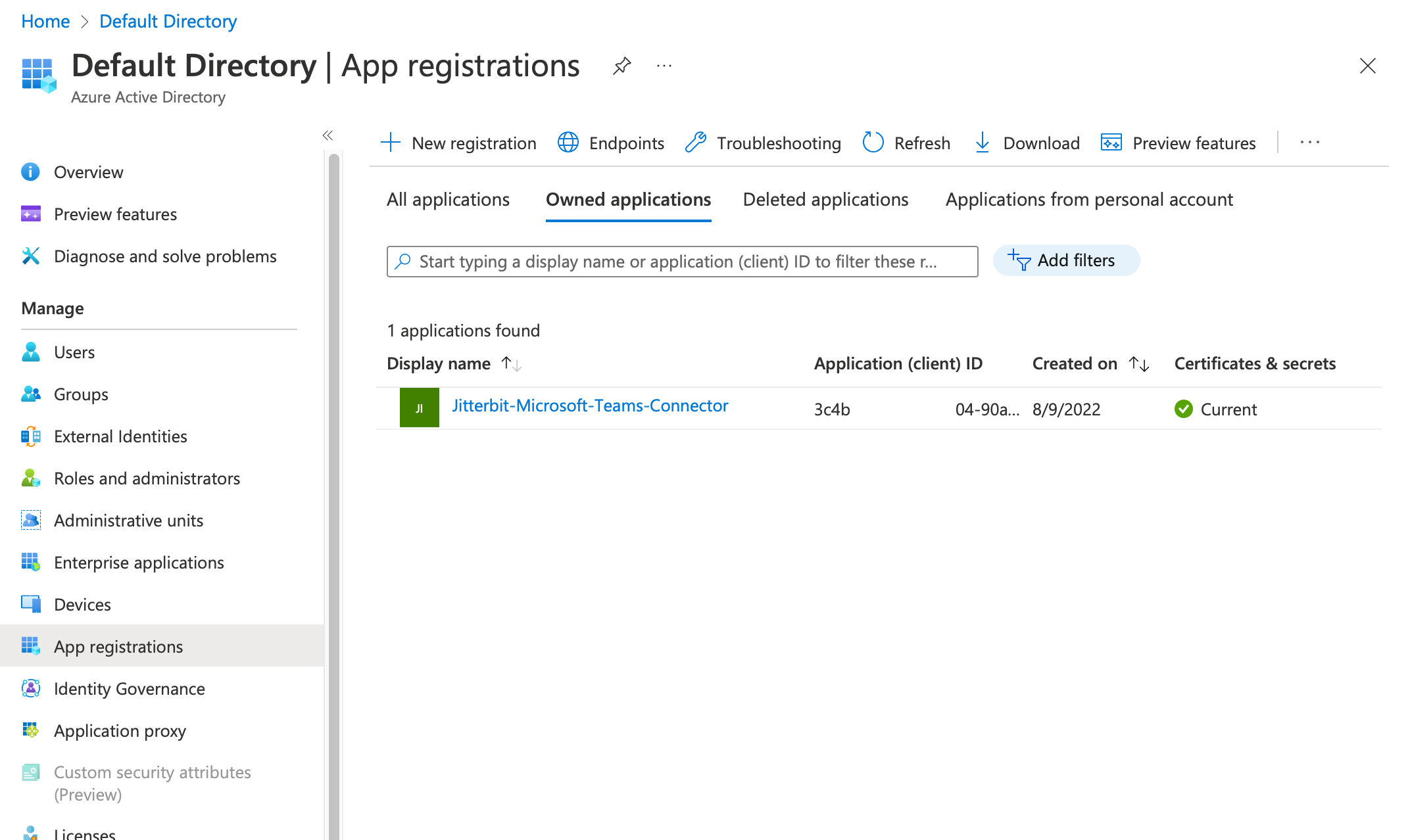

After logging in to Microsoft Azure portal, create a new application by clicking App registrations in the left sidebar and then clicking New registration in the menu of tools that appears:

Microsoft application registration

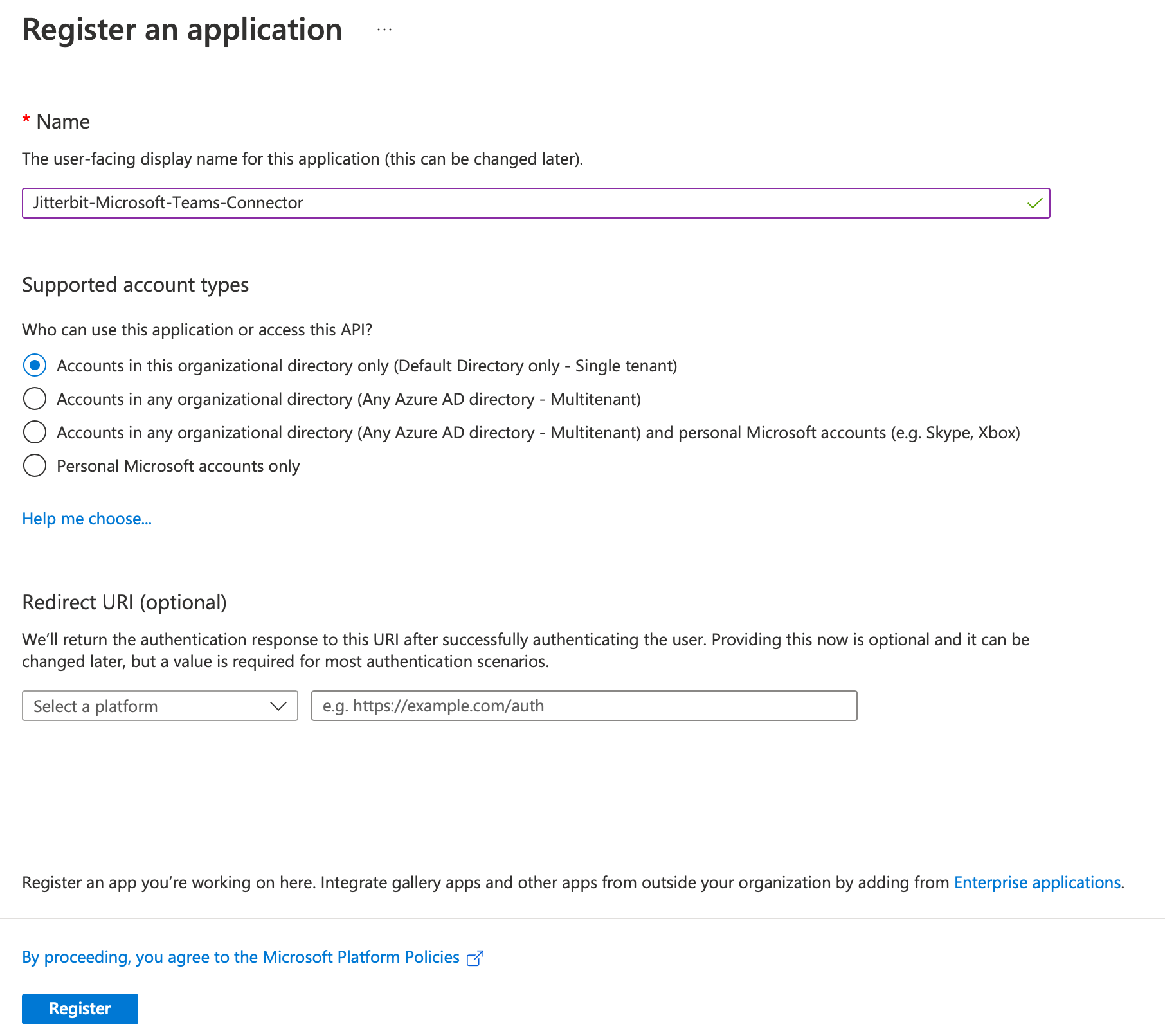

You are taken to a form where you can provide a name for your application. Enter a name (such as Jitterbit-Microsoft-Teams-Connector), accept the default supported account type, and click Register:

Microsoft application new registration

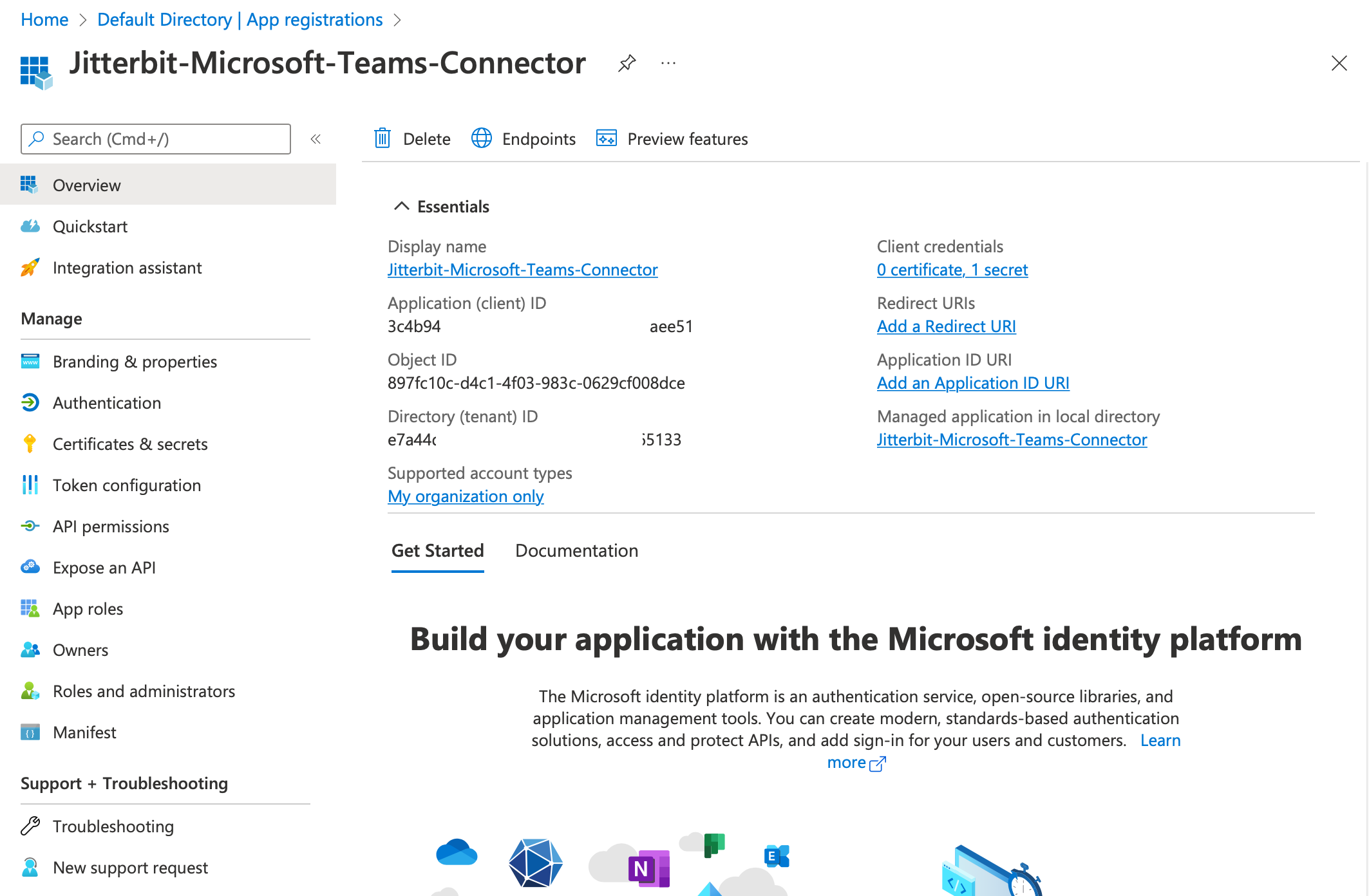

Once the app is created, from that application's Overview page you can obtain its Application (client) ID and Directory (tenant) ID:

Microsoft application completed registration

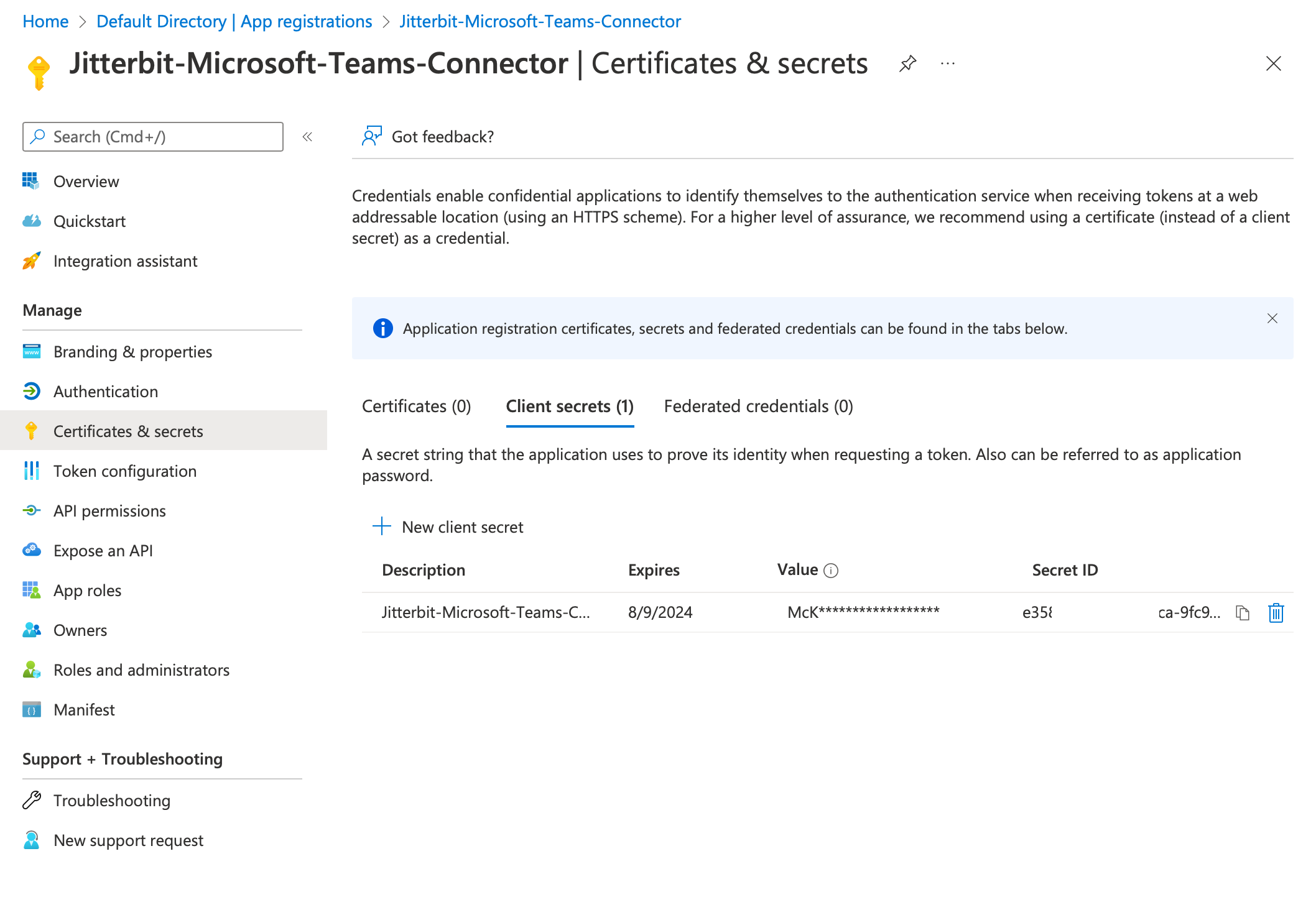

Using the link to Certificates & secrets in the left sidebar, you can create a new client secret for the application. From this you can obtain the value of the client secret:

Microsoft application secret

Note

The Value of the client secret is what is used in the connection's Client Secret field. The value is visible only once, when it is created, and should be copied and securely stored. Otherwise you will need to create a new client secret.

Copy these two IDs and the client secret value and store them safely so that you can retrieve them when configuring the connector.

Microsoft Graph API permissions

After creating the app, you need to configure the application API permissions.

Registered applications are authorized to call APIs only when they are granted permission. The following table lists the minimum set of required Microsoft Graph API permissions needed to use all Microsoft Teams connector activities. Note that as this list has 31 permissions, an account with sufficient limits on requested permissions per app must be used.

To add permissions, click API permissions in the left sidebar of the app registration to view the app's permissions, and then click Add a permission to start the selection of permissions. These permissions are all from the Microsoft Graph API.

API/Permission Name Type Description Admin Consent Required
Channel.Create Delegated Create channels Yes
Channel.Delete.All Delegated Delete channels Yes
Channel.ReadBasic.All Delegated Read the names and descriptions of channels No
ChannelMember.Read.All Delegated Read the members of channels Yes
ChannelMember.ReadWrite.All Delegated Add and remove members from channels Yes
ChannelMessage.Edit Delegated Edit user's channel messages Yes
ChannelMessage.Read.All Delegated Read user channel messages Yes
ChannelMessage.Send Delegated Send channel messages No
ChannelSettings.Read.All Delegated Read the names, descriptions, and settings of channels No
ChannelSettings.ReadWrite.All Delegated Read and write the names, descriptions, and settings of channel Yes
Chat.Create Delegated Create chats No
Chat.Read Delegated Read user chat messages No
Chat.ReadBasic Delegated Read names and members of user chat threads No
Chat.ReadWrite Delegated Read and write user chat messages No
ChatMember.Read Delegated Read the members of chats Yes
ChatMember.ReadWrite Delegated Add and remove members from chats Yes
ChatMessage.Read Delegated Read user chat messages No
ChatMessage.Send Delegated Send user chat messages No
Directory.AccessAsUser.All Delegated Access directory as the signed in user Yes
Directory.Read.All Delegated Read directory data Yes
Directory.ReadWrite.All Delegated Read and write directory data Yes
Group.Read.All Delegated Read all groups Yes
Group.ReadWrite.All Delegated Read and write all groups Yes
GroupMember.Read.All Delegated Read group memberships Yes
GroupMember.ReadWrite.All Delegated Read and write group memberships Yes
Team.Create Delegated Create teams No
Team.ReadBasic.All Delegated Read the names and descriptions of teams No
TeamSettings.Read.All Delegated Read teams' settings Yes
TeamSettings.ReadWrite.All Delegated Read and change teams' settings Yes
User.Read Delegated Sign in and read user profile No
User.ReadWrite.All Delegated Read and write all users' full profiles Yes

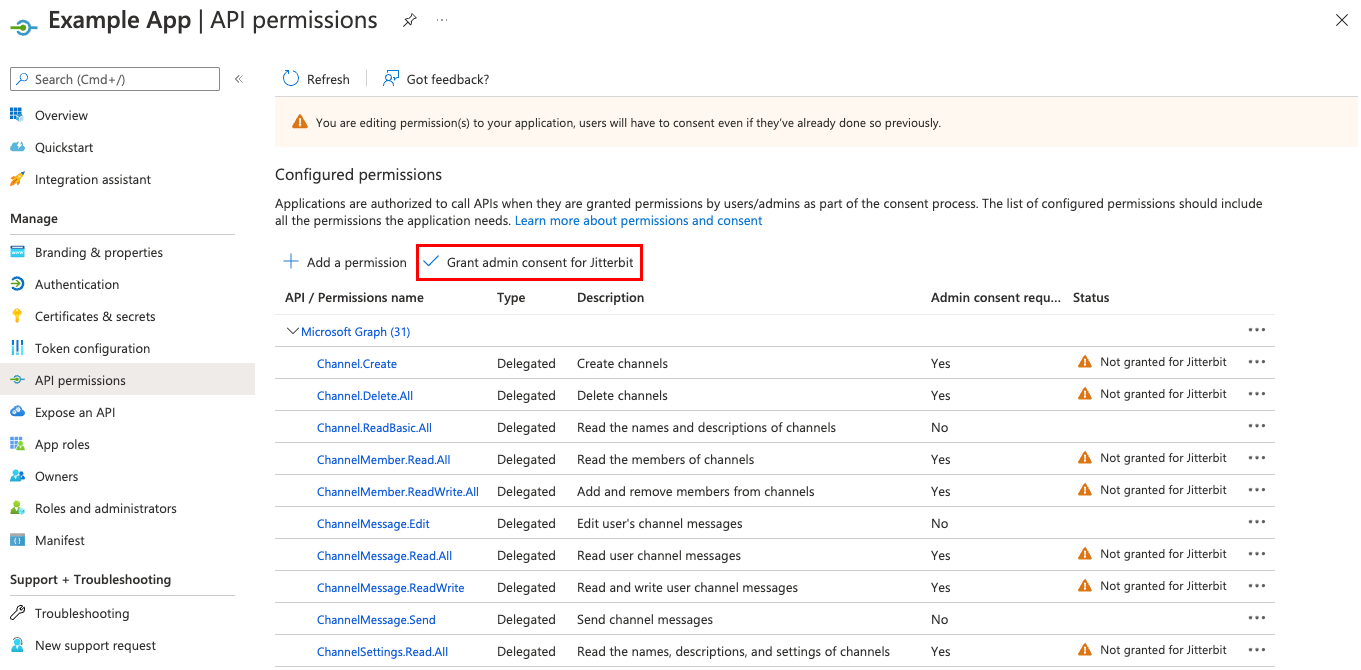

Once you have added permissions, click Grant admin consent to complete the registration:

Microsoft application permissions

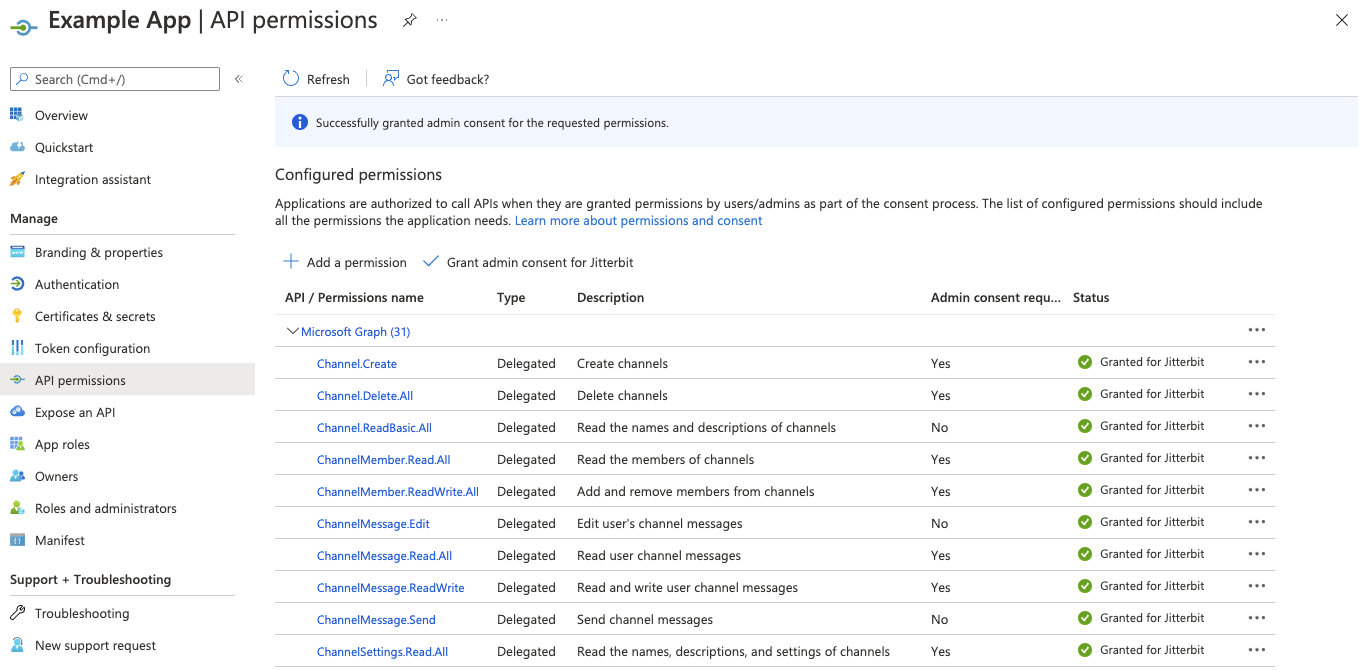

Once completed, each permission should have a green checkmark:

Microsoft application permissions

Script to create a Microsoft Teams app

An unsupported PowerShell script is available for use on Windows systems to create an appropriately configured Teams App in Microsoft Entra ID with the appropriate permissions required to connect using the Jitterbit connector.

Warning

The script is unsupported by Jitterbit. All usage is at your own risk.

  1. Download the script provided below.
  2. Review and adjust the script if you would like a different name for the completed app.
  3. Go to PowerShell. You may need to configure administrator and execution permissions on your system and its shell in order to run the script.
  4. Execute the script using ./AddTeamsAppPowerShell.v2.ps1.
  5. When prompted, enter your Microsoft Entra ID admin permissions.
  6. If successful, a new app will be created in Microsoft Entra ID named Teams App.
  7. Create a client secret and copy it with the Application (client) ID and Directory (tenant) ID as described above.
  8. Grant admin consent as described above.

Download addteamSAPppowershell script

Next steps

With the registration completed and permissions added, you can now configure and test the connection.
