Gmail connector for Jitterbit Integration Studio

Summary

The Gmail connector establishes access to Gmail.

The Gmail connector provides an interface for creating a Gmail connection, the foundation used for generating instances of Gmail activities. These activities, once configured, interact with Gmail through the connection.

The Gmail connector is accessed from the design component palette's Project endpoints and connectors tab (see Design component palette).

Connector overview

This connector is used to first configure a Gmail connection. Activity types associated with that connection are then used to create instances of activities that are intended to be used as sources (to provide data in an operation) or targets (to consume data in an operation).

Together, a specific Gmail connection and its activities are referred to as a Gmail endpoint:

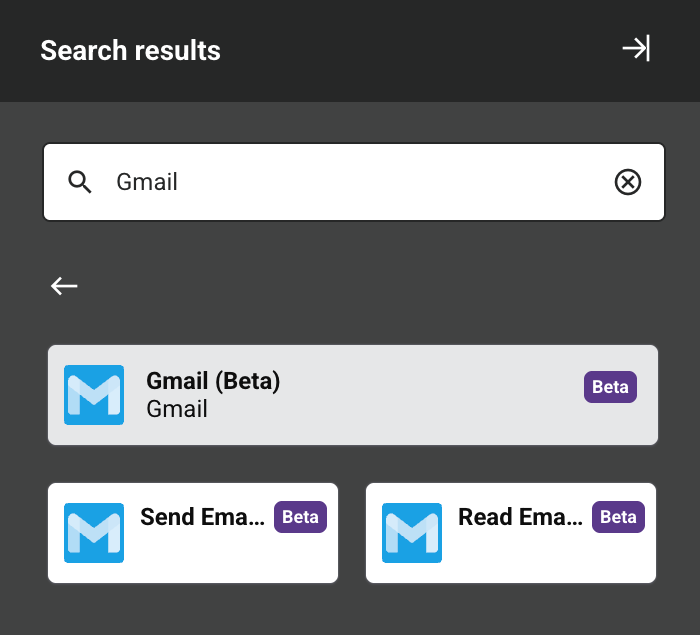

Gmail activity types

  • Send Email: Sends an email with Gmail and is intended to be used as a target in an operation.

  • Read Email: Retrieves emails from Gmail and is intended to be used as a source in an operation.

Endpoints created with this connector are included in endpoint usage reporting and count toward your license.

Prerequisites and supported API versions

This connector can be used with cloud agents and private agents.

Agents automatically download the latest version of this connector when required. On private agents, you can suspend these updates with the Disable Auto Connector Update organization policy.

The Gmail connector uses the Gmail API. Refer to the API documentation for information on the schema nodes and fields.

To use 3-legged OAuth 2.0 (3LO) authentication or Google Cloud service account authentication with the Gmail connector, additional prerequisites are required. Agent version 10.83 / 11.21 or later is required to use 3LO.

Note

If S/MIME encryption is required, refer to Google's Turn on hosted S/MIME for message encryption guide.

Troubleshooting

If you experience issues with the Gmail connector, these troubleshooting steps are recommended:

  1. Click the Test button in the connection configuration to ensure the connection is successful and to ensure the latest version of the connector is downloaded to the agent (unless using the Disable Auto Connector Update organization policy).

  2. Check the operation logs for any information written during execution of the operation.

  3. Enable operation debug logging (for cloud agents or for private agents) to generate additional log files and data.

  4. If using private agents, you can enable connector verbose logging for this connector by adding this logger configuration entry to your private agent's logback.xml file:

    <logger name="org.jitterbit.connector.gmail" level="DEBUG"/>

    For more information on connector verbose logging, see Verbose logging for connectors using Jitterbit private agents.

  5. If using private agents, you can check the agent logs for more information.

  6. For additional troubleshooting considerations, see Operation troubleshooting.
