Anthropic Claude (Beta) connector for Jitterbit Studio

Summary

The Anthropic Claude (Beta) connector establishes access to the Anthropic Claude API.

The Anthropic Claude (Beta) connector provides an interface for creating an Anthropic Claude (Beta) connection, the foundation used for generating instances of Anthropic Claude (Beta) activities. These activities, once configured, interact with Anthropic Claude through the connection.

The Anthropic Claude (Beta) connector is accessed from the design component palette's Project endpoints and connectors tab (see Design component palette).

Note

For beta access and to provide feedback, contact the Jitterbit Product Team.

Connector overview

This connector is used to first configure an Anthropic Claude (Beta) connection. Activity types associated with that connection are then used to create instances of activities that are intended to be used as sources (to provide data in an operation) or targets (to consume data in an operation).

Together, a specific Anthropic Claude (Beta) connection and its activities are referred to as an Anthropic Claude (Beta) endpoint:

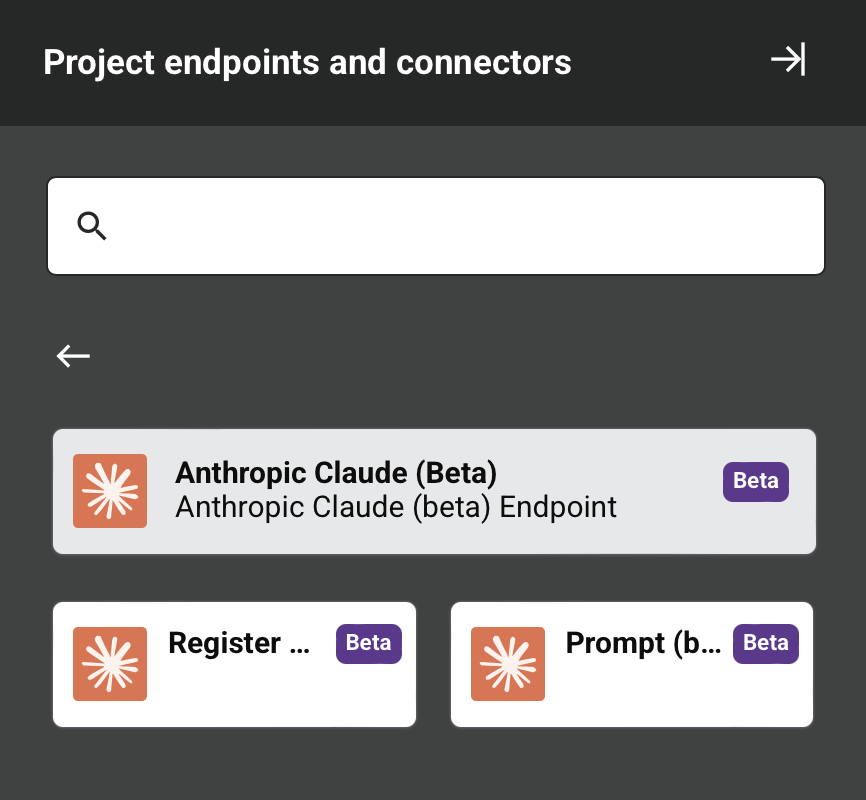

Anthropic Claude activity types

Register Tools: Registers tools with the Claude model and is intended to be used as a source in an operation.
Prompt: Sends a prompt to the specified Claude model and is intended to be used as a target in an operation.

Note

This connector is a Connector SDK-based connector, which may be referred to by Jitterbit when communicating changes made to connectors built with the Connector SDK.

Endpoints created with this connector are included in endpoint usage reporting and count toward your license.

Prerequisites and supported API versions

The activity type you use determines which agent type is required:

The Prompt activity can be used with either cloud or private agents.
The Register Tools activity can be used only with private agents.

The Anthropic Claude (Beta) connector supports two authentication types:

Anthropic Cloud: Connects to Claude models hosted directly by Anthropic using an API key. To obtain an API key, sign in to the Anthropic Console and generate a key from your account settings.
Amazon Bedrock: Connects to Claude models served through Amazon Bedrock, using AWS IAM credentials.

The connector uses the Anthropic Claude API. Refer to the API documentation for information on the schema nodes and fields.

The connector supports all Claude models available through the Anthropic API and Amazon Bedrock.

Troubleshooting

If you experience issues with the Anthropic Claude (Beta) connector, these troubleshooting steps are recommended:

Click the Test button in the connection configuration to ensure the connection is successful and to ensure the latest version of the connector is downloaded to the agent (unless using the Disable Auto Connector Update organization policy).
Check the operation logs for any information written during execution of the operation.
Enable operation debug logging (for cloud agents or for private agents) to generate additional log files and data.
If using private agents, you can enable connector verbose logging for this connector by adding this logger configuration entry to your private agent's logback.xml file:
```
<logger name="org.jitterbit.connector.anthropicclaude" level="DEBUG"/>
```
For more information on connector verbose logging, see Verbose logging for connectors using Jitterbit private agents.
If using private agents, you can check the agent logs for more information.
For additional troubleshooting considerations, see Operation troubleshooting.
