Widgets in Jitterbit App Builder

Overview

Widgets in App Builder allow developers to provide 3rd party (or their own) code to show a customized Control on the page. Widgets allow you to define more metadata, see the Archive File Contents section for detail. Parameters now support a more robust definition, see the Widget API section for detail.

See the Widget download library for a list of supported Widgets you can use in App Builder.

Widget guidelines

1. Widgets should show the underlying value, or it should be obvious what the underlying value is.

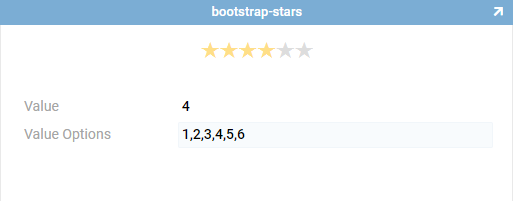

   • Good: Value displayed

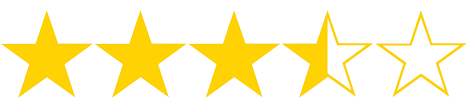

   • Good: Value obvious

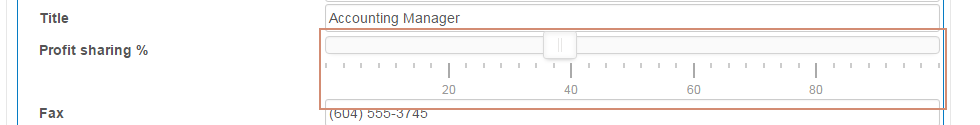

   • Bad:



2. Widget Testing. Remember to consider how the widget will be interacted with on touch and non-touch devices.

3. Widgets should respect auto-edit and auto-save. Widgets will get this behavior from App Builder automatically.

Archive file contents

_manifest.json

All widgets include a manifest file. You can define more metadata in this file, as described below.

{
    "name": "Slider",
    "developer": "App Builder",
    "binder": "binder.js",
    "template": "view.html",
    ...
    "targetContainer": false,
    "purpose": "Site",
    "parameters": [
        {
            "name": "Parameter name",
            "default": "default value",
            "translate": true
        }
    ]
}

• name: The name of the Widget that will appear in the App Builder IDE as well as become the archive file name.

• developer: The username of the developer working on this Widget.

• binder: The filename of the Widget binder. See below for more information.

• template: The filename of the template HTML file. See below for more information.

• targetContainer: Supports the value true or false.

• purpose: Supports the defined value of Site or Field, which indicates how the Widget is intended to be used.

• parameters: Supports an array of parameters metadata, for each:

  • name: the parameter name
  • default: a string containing the default value
  • translate: supports the value true or false

• version: Version number of the Widget. Increment this number to ensure users receive the latest edition of your code.

• createdOn: Date this version was released. Informational purposes only.

• dependencies: Comma delimited list of any dependencies required by your Widget binder. The order these files appear will match the order they will appear in the dependency array of the Widget API. Be sure to include the file extension.

  • JavaScript
  • CSS

  For example, if you define a library that returns a reference you need to use to install onto an element:

  Manifest Entry

  "javascript": [
    "noUiSlider.8.0.2/nouislider.js",
    "noUiSlider.8.0.2/nouislider_extras.js"
  ]


  Your Widget API context would include both of those objects:

  Usage

  var install = function (holderElement, context) {
    var sliderLibrary = context.loadedDependencies[0];
    sliderLibrary.createSlider(holderElement);
  }


  Note

  Even if you have no dependencies, include the JavaScript and CSS properties with an empty array.

  Manifest Entry

  "javascript": [],
  "css": []


binder.js

binder.js

define(function () {
    return {
        callbacks: {
            events: {
                install: function (holderElement, context) {},
                uninstall: function (holderElement, context) {}
            }
        }
    };
});

The binder provides two callbacks required to bind the App Builder API to your libraries. In each, two function parameters are provided.

• holderElement: A DOM element that contains the HTML mark-up provided in the specified template file. As this file is optional, the holder element may be empty. The holder element is the cell the Widget will be implementing. It is the area highlighted in the screenshot below and does not include the field's label.




• context: An instance of the Widget API context. This object contains any JavaScript depencencies specified in the binder as well as access to the data in the cell and panel.

• view.html (optional): This file contains all static HTML required to load this Widget. If not specified, the Widget will be created without any content and the install callback defined in the binder will need to render any HTML required.

Widget API

getCell()
Returns an instance of the WidgetApiCell.

getRow()
Returns an instance of the WidgetApiRow.

isEditState() - boolean
Identifies if the row is editable.

getParameter(name) - string
Will retrieve the defined parameter from either the default value or the cell in this row that was named by the designer.

loadedDependencies
A property containing an array of objects returned by RequireJS. This array is provided in the same order as the dependencies are defined in the _manifest.json file.

WidgetApiCell
Represents a single cell. Cells are the backing view model of the control seen on the page. They contain values, can be monitored for changes, and exist in a row of a table.

value - string
This property can be used to get and set the underlying value of the cell.

customTextbox.on('change', function (value) {
    cell.value = value;
});

formattedValue - string
This property can be used to get and set the underlying display value of the cell. For example, a percent field's underlying value would be 0.25, while the display value (formatted value) is "25%". Or, a list control could have a value of a GUID, while the formatted value is the first and last name of a client.

persistedValue - string
This property can be used to get the underlying persisted value of the cell. A persisted value is the un-edited value currently stored in the data source. This can be used to revert a cell to a clean state.

setDataChangeCallback
This function is used to set callbacks to run when the form the widget is on gets new data.

context.setDataChangeCallback(function () {
   var updatedMin = parseInt(context.getParameter("Min"), 10);
});

setChangeCallback(name: string, value: Function)
This function is used to set callbacks on a cell. The following named call backs can be defined:

• value
• formattedValue
• disabled

cell.setChangeCallback('value', function (value) {
    console.log("The cell's value has been changed to", value);
});

App Builder may cause changes to the cell during validation events, if default values are set or if another Widget causes changes that affect this cell. App Builder may also disable cells when events are being executed.

App Builder will pass in a single parameter to the provided callback containing the changed value. In the case of disabled, the value is either true or false.

dropChangeCallback(name: string)
Removes the subscription to a change callback.

WidgetApiRow
Represents a row in the data source. This row contains the cell that the Widget is implementing.

getCellByColumnName(name: string) - WidgetApiCell
Returns an instance of a cell in this row. Name is case sensitive and must match the name as defined on the control, not the data source name.

edit()
Changes the row into edit mode.

save()
Saves any modified values back onto the data source.

deleteRow()
Will attempt to delete the row from the data source.

Parameters
Parameters for a widget can be defined at the panel level. When adding a parameter, the developer can configure:

• Widget Parameter: Name assigned to the parameter value.

• Parameter Type: Defaults to Control, can also be defined as Column or Static Value. Depending on which Type you define, you will have different values to configure accordingly:

  • Control:
    • Target Control: A control from the parent panel that will provide with this parameter value.
    • Use Formatted Value: Use the formatted display value.
    • Active: Indicates if this binding is active or not. Inactive bindings won't be used.
  • Column:
    • Target Column: A column from the parent panel's source table that will provide with this parameter value.
    • Use Formatted Value: Use the formatted display value.
    • Active: Indicates if this binding is active or not. Inactive bindings won't be used.
  • Static Value:
    • Value: Static value for the parameter.
    • Translatable: If enabled, allows the Widget to be translated where applicable.
    • Active: Indicates if this binding is active or not. Inactive bindings won't be used.

How to Build a Widget & Troubleshooting

Widgets are a blank slate. App Builder will run the widget code instead of App Builder's implementation.

Showing the current value
If you are rendering a thermometer, for example, you'll likely need to include the current value along with the mercury level. (see $3,500 example text below)

However, a star rating widget may not need to indicate the actual cell value.

Getting and setting the value from App Builder onto your widget
App Builder can update the value via defaults or changes to parent records. Your library will need to be able to update itself when these events happen.

Providing callbacks allows App Builder to run your code when it needs to send new values to your widget. See setChangeCallback above.

Also, when installing a library you will typically need to set the initial value from the cell provided. App Builder will not run the Change Callback on install, only when events require it.

Uploading new versions & debugging
Once you have a widget operational and you are debugging an error, follow the following steps:

1. Zip the contents of the local folder you're working on (make sure you do not zip the parent folder itself, this will create an extra folder in the zip file)
2. Upload to the widget zip file in the Look & Feel application
3. Press refresh on the page using your widget. Note: you may need to disable your browser cache while developing, otherwise you could end up with stale code.

View vs. Edit state
When adding a widget to a panel, you can specify if your widget will handle the rendering of both edit and view state. If your widget only handles edit state, App Builder will render the cell value when in view state.

If your widget handles both states, your control CAN be used to edit values without needing to click the edit toolbar button first.

To do this, you need to switch the row to edit state if it's not already. Here is an example:

if (!context.isEditState()) {
  context.getRow().edit();
}
context.getCell().value = myNewValueVariable;
context.getRow().save();

You could also use the isEditState property to render a "read-only" version of the widget that displays the value but can't be used to modify the cell.

Loading large dependencies
Large resources like JQuery UI take a long time to download and install. For performance purposes, it is recommended that only light libraries or libraries that use existing App Builder dependencies are implemented. Some errors have been reported when dependencies load too slowly.

Working with binary data
Some cells in App Builder can contain binary data stored as a base64 string. Libraries can be used to modify and store data in these cells, such as image editing utilities. See the Image Resizer library in the App Builder collection for example code.

row.ViewModel
The current version of App Builder exposes a parameter called ViewModel in the row API. This provides access to the App Builder back-end data and will not be guaranteed to work when upgrading App Builder. It is not recommended to write code that relies on this property.

Site Widgets

Widgets can also be "site level". This is defined at the widget level and they are used via Control Center > Instance Settings > Site Widgets.

Site widgets are run as soon as the browser loads. This allows code to execute as soon as possible. The code will run async, meaning the page won't wait to render itself until the code runs.

Site parameters are not data bound, they support plain text values only.

How to add a Site Widget in App Builder

1. Go to the App Workbench > Look & Feel > Widgets

2. Select the Collection you want to add the Widget to

3. Click the + Widget button
4. Provide a Name for the Widget. For example: Dial Widget
5. Click Browse and locate the Widget .zip file containing all required Widget files, select it and click Open
6. Provide any Documentation to describe the widget. Help text information appearing in the IDE for a widget is provided by the widget record.
7. Click Save
8. On the Widget Parameters panel, click + Parameter and define any required Parameters for the Widget
9. On the page that will run your Widget, select the Widget from the Widget Information region of the Control Designer and set the Interface and Active Mode values


API

getParameter(name) - string
Will retreive the defined parameter from either the default value or the parameter provided by the designer via the Site Widget definition.

getCurrentPageLocation() - string
Gets the current URL of the page.

getCurrentAuthenticationUserName() - string
Gets the currently logged in username, or null if not authenticated.

onPageLocationChange(handler: Function(event))
This function is used to set callbacks that run when the page location changes. Will return the path as a string.

onAuthenticationChange(handler: Function(event))
This function is used to set callbacks that run when the authenticated user changes. Will return the username as a string.

Troubleshooting

App Builder supports keyboard shortcuts, which some widget libraries may confict with.App Builder currently supports the following hotkeys: text; enter; esc; left-arrow; up-arrow; right-arrow; down-arrow; backtick; and delete.

The following instructions allow you to disable hotkey support to a given HTML element and its child elements.

To ignore all keyboard shortcuts either use a CSS class or the data field value vinyl-hotkeys-ignore:

• <div class="vinyl-hotkeys-ignore"></div>
• <div data-vinyl-hotkeys-ignore="true"></div>

To ignore just some keyboard bindings, add them to the CSS class suffix. If there's more than one word, hyphenate them in the CSS class suffix:

• <div class="vinyl-hotkeys-ignore-text"></div>
• <div data-vinyl-hotkeys-ignore-text="true"></div>
• <div class="vinyl-hotkeys-ignore-left-allow"></div>
• <div data-vinyl-hotkeys-ignore-left-allow="true"></div>

App Builder will automatically ignore text fields and divs marked as content editable:

• <div contenteditable="true"></div>
